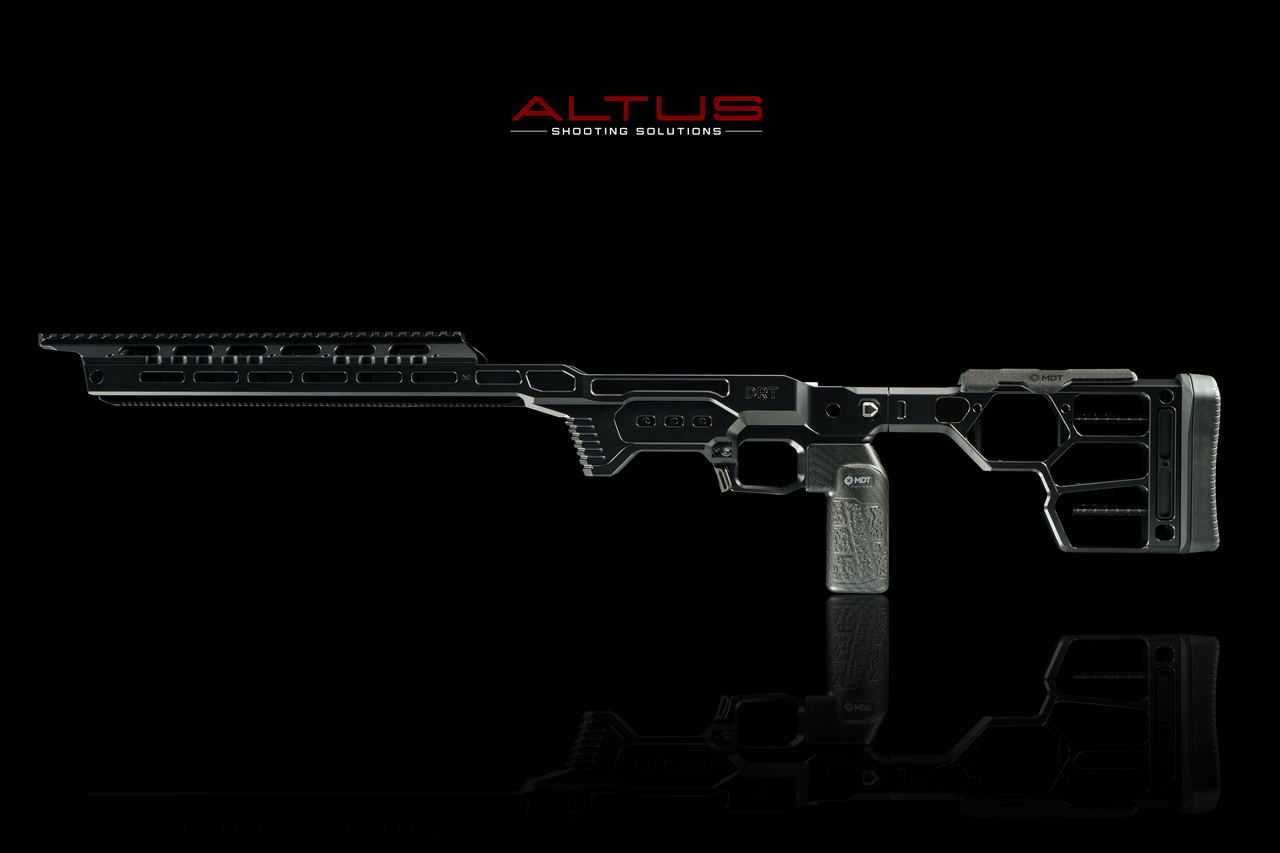

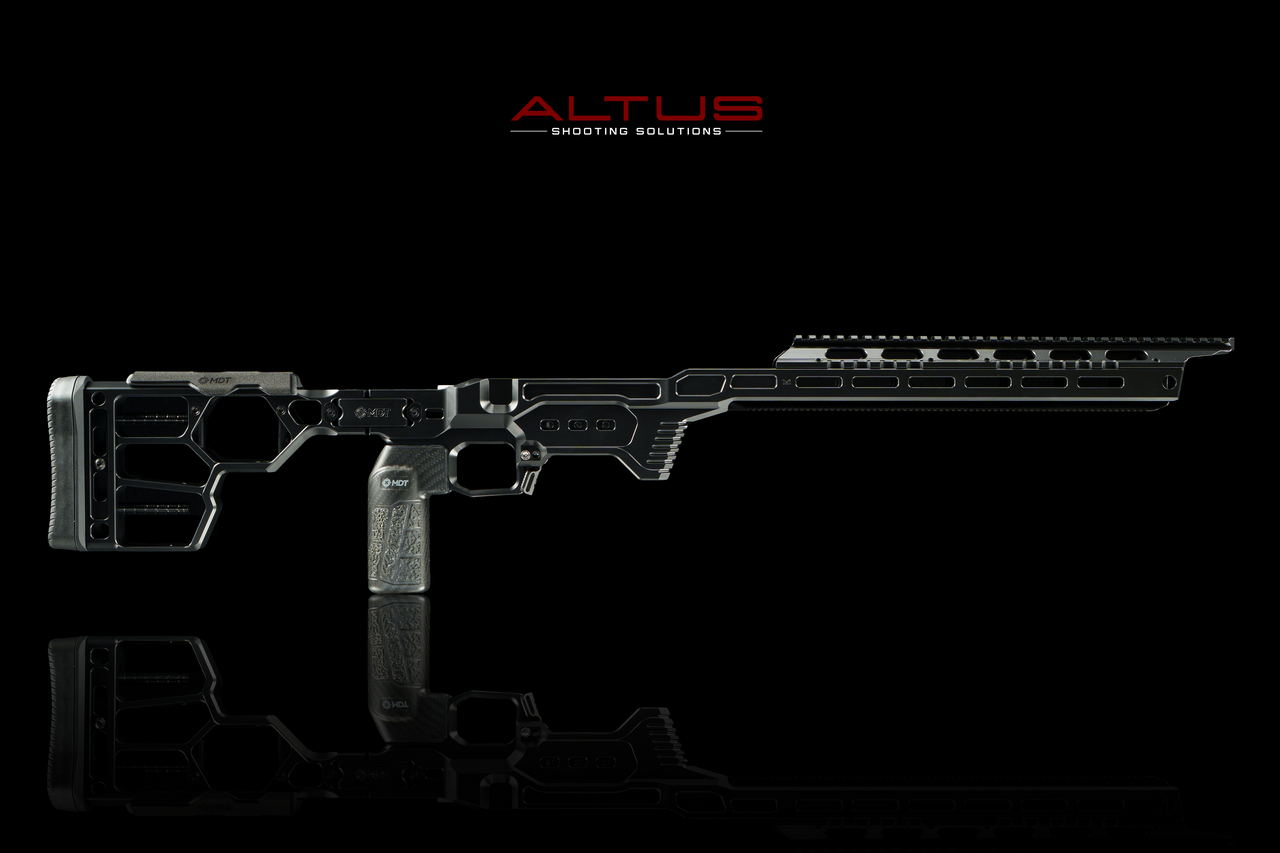

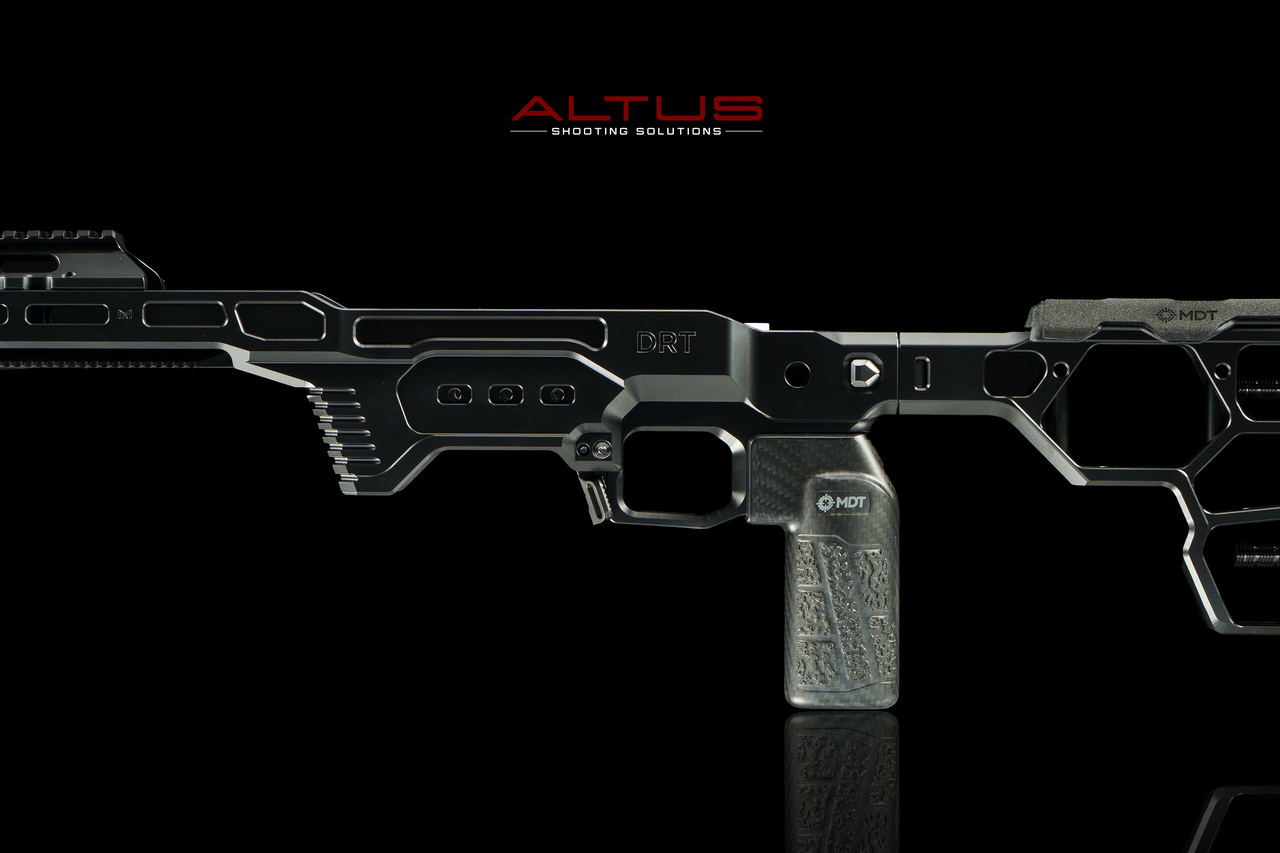

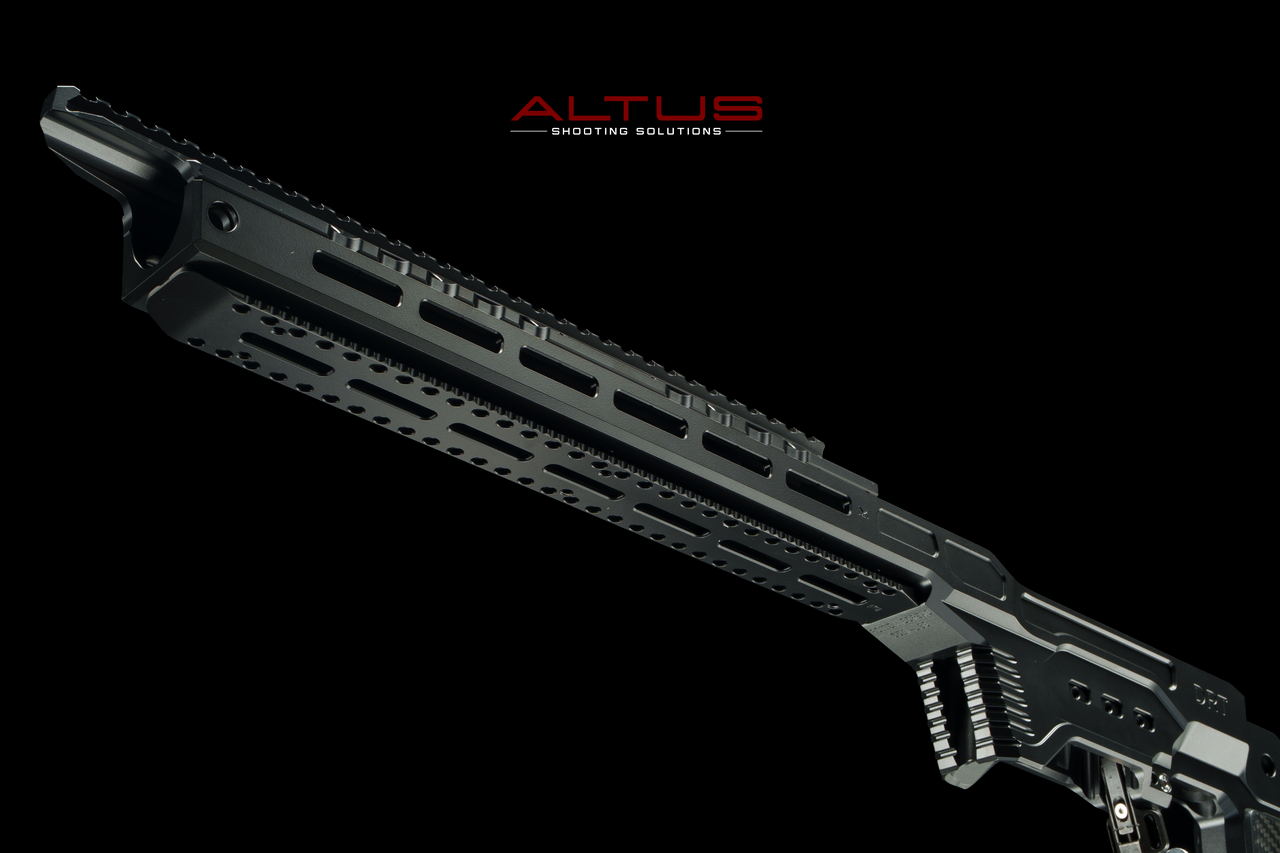

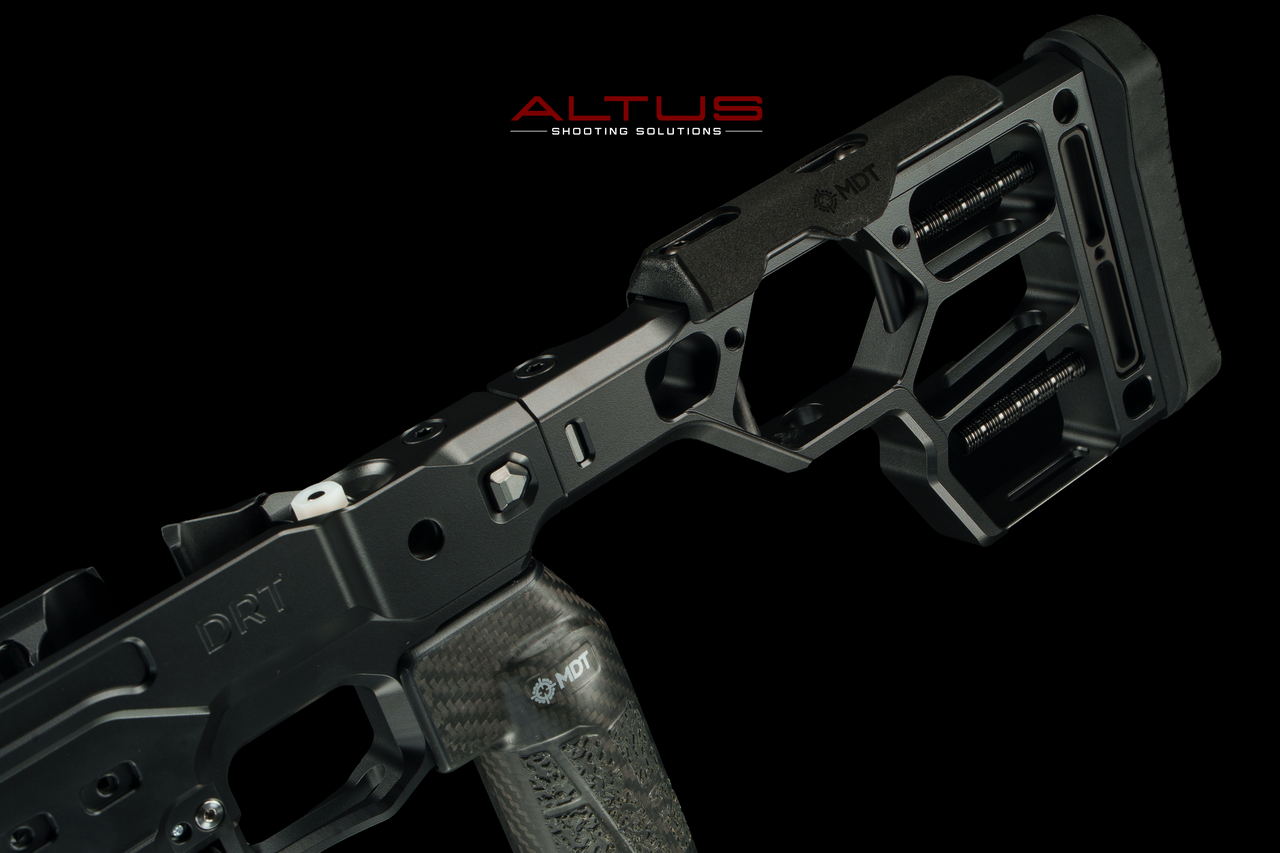

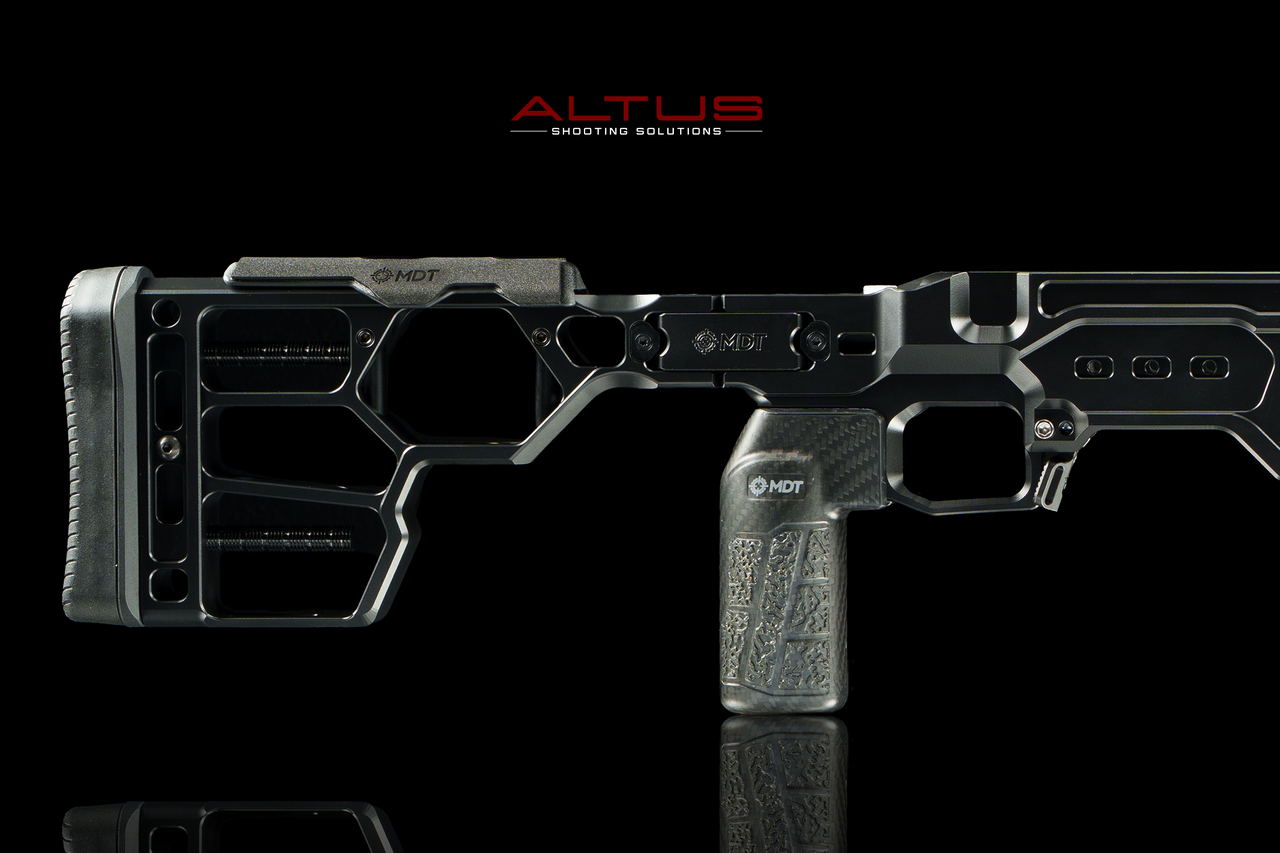

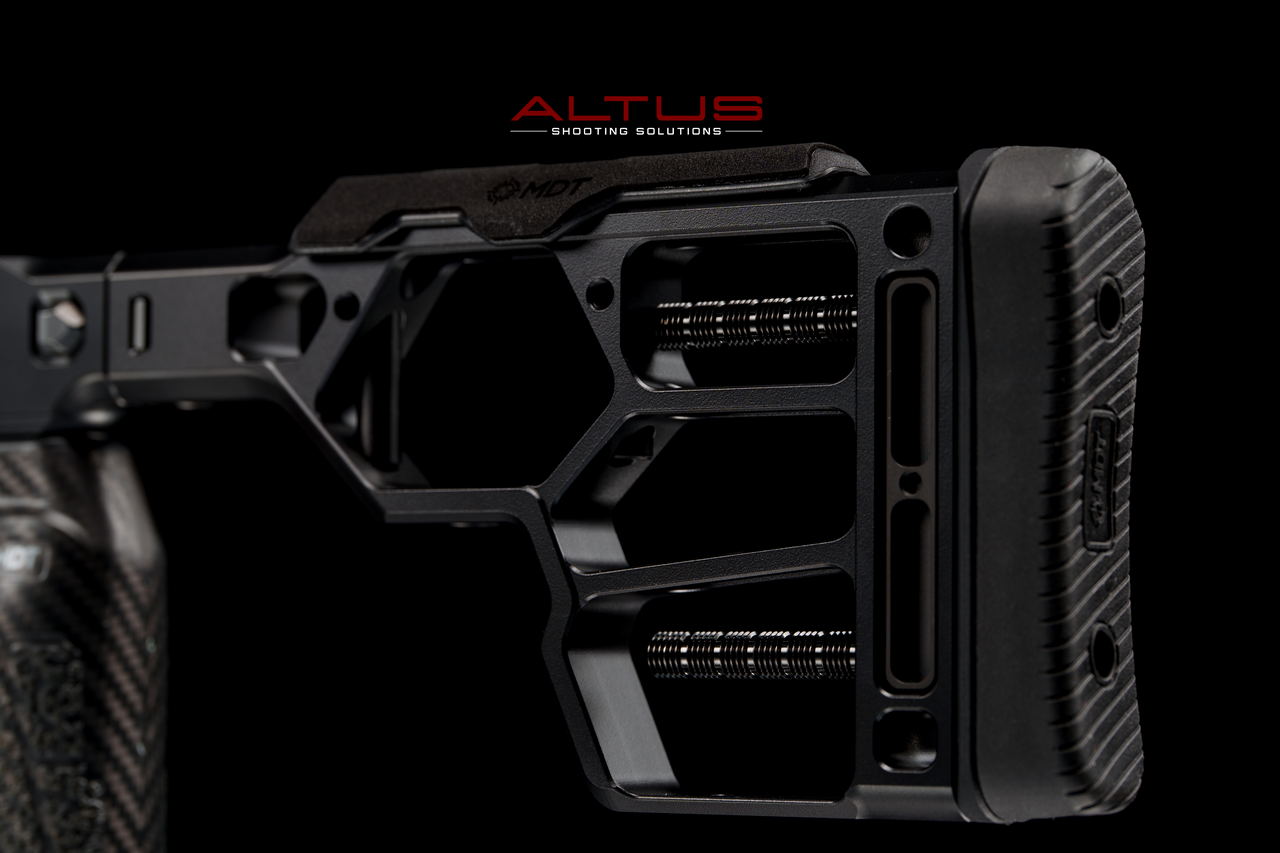

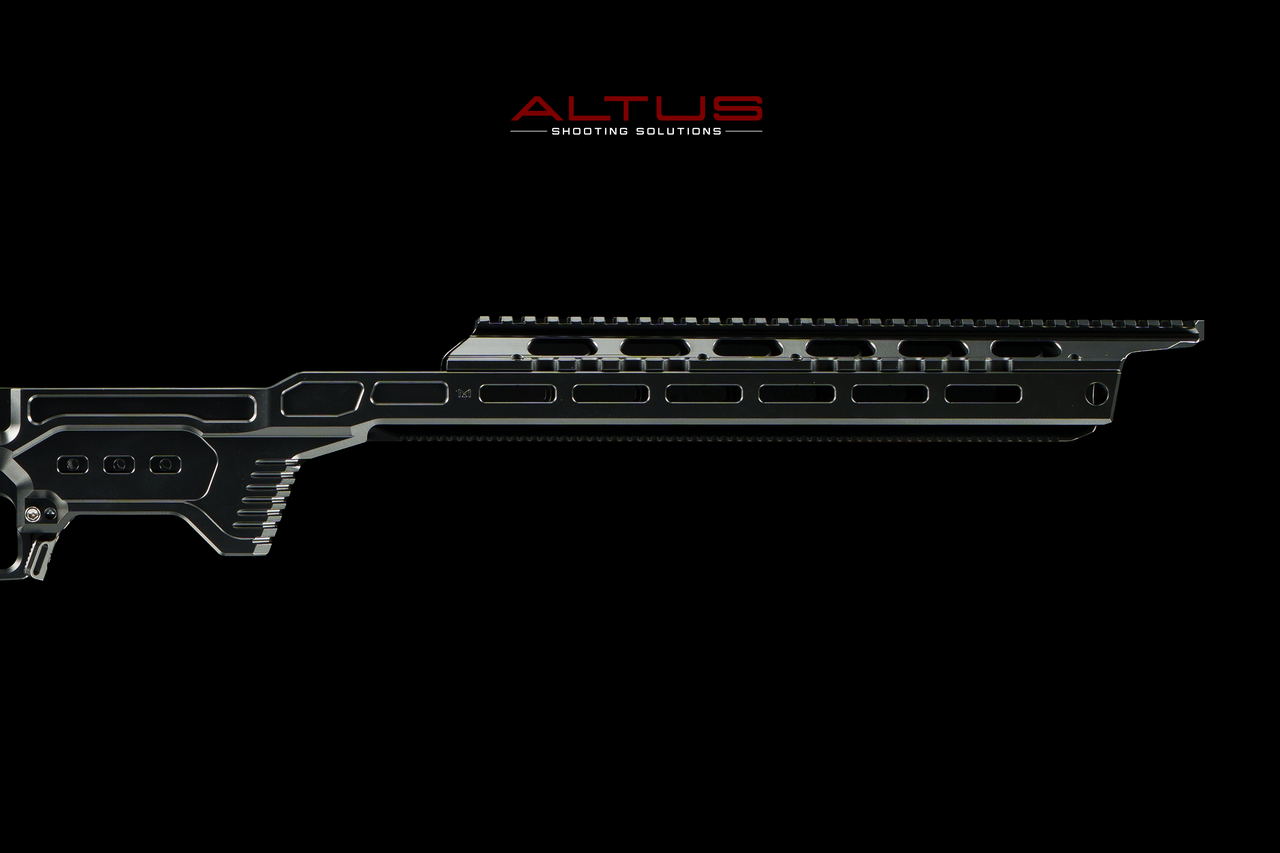

DRT CHASSIS SYSTEM

FOLDS COMPACT, OPENS FAST, AND LOCKS SOLID FOR THE SHOT — Double Hinge Integrated Adjustable Friction Folder
CLIP-ON NIGHT VISION CO-WITNESSED WITH YOUR OPTIC — Skeletonized 20 MOA NV Bridge
LESS MUZZLE RISE, FASTER FOLLOW-UP SHOTS — Low Bore Axis Design Keeps You on Target
NEVER LOSE YOUR MAGAZINE AND KEEP A SOLID GRIP, EVEN IN THE COLD — Mag Release Lock and GEN 2 Carbon Fiber Vertical Grip

ELITE-LEVEL FEATURES AT 3.2LBS
Built for the predator hunter running a clip-on thermal or NV, and all night field carry.

SPECIFICATIONS

Weight: 3.2 lbs / 51.2 oz (chassis, buttstock, NV bridge, CF grip)
Overall length: 33.7"
Folded length: 24.52"
Forend length from recoil lug: 14.93"
NV bridge length: 13"
LOP: 12" to 14.25" (2.25" adjustment)
Cheekriser: 1.15" height adjustment, no fore/aft adjustment
Materials:
- Magnesium (chassis body and buttstock)
- Aluminum (NV bridge and ARCA rail)
- Titanium (LOP pins, LOP clamp, action screws)
- Carbon Fiber (grip)
Colors: Black, FDE

FEATURES

M-LOK thumbshelf (right side only)
Included with a 5" offset Picatinny rail for extra provided space for customization
Included with a NV bridge, spacers, offset rail, grip tape panels, thumbscrew, and a spare pair of folder stops
Tool-less LOP via the included thumbscrew

COMPATIBILITY

Max recoil lug height: 0.375" from bottom of action
Muzzle diameter under 1.1"
Barrel length over 15" to clear the forend and NV bridge. 16.25" when running a suppressor
Up to 1.25" straight contour with the included NV bridge spacer kit
Minimum scope ring height: 1.5" without spacers, 1.7" with spacers
NV: requires a 20 MOA base or integrated rail. Bottom of action to top of Pic rail 1.67" to 1.87" with 1.5" rings

ACCESSORY COMPATIBILITY

Vertical buttpad adjustment base
LOP spacers
Set screw / wheel knob replacement pack
MDT Elite Bag Rider
2.5" M-LOK Pic rail on the side of the magwell
AR-15 grips

Footnotes
WEIGHTS AND DIMENSIONS ARE BASED ON THE REMINGTON 700 SA RH FOOTPRINT.
DRT CHASSIS SYSTEM IS NOT COMPATIBLE WITH 3 AND 5 ROUND MDT POLYMER MAGAZINES.
